Interconnected Door Lock Reversible Passage Lever, UL Fire Rated, ANSI 2, Contemporary Style Riley Collection

Product #: 87432 | Finish: Satin Nickel

$109.15

In Stock: 12
Description
  • Interconnected Lock With Deadbolt And Reversible Passage Lever
  • Single Action Functionality
  • Deadbolt Is Operated With A Key Outside And Thumb Turn Inside
  • Deadbolt And Passage Latches Are Simultaneously Retracted By Lever Operation
  • ANSI Grade 2
  • ADA Compliant
  • UL10C 3-Hour Fire Rated
  • Door Prep: Cross Bore 2 1/8 Inch, Edge Bore 1 1/8 Inch
  • Lever And Deadbolt Bores 5 1/2 Inches Center To Center
  • Door Thickness: Fits Doors 1 3/8 Inches to 1 3/4 Inches Thick
  • Faceplates: Radius Corners 1 1/8 Inches X 2 1/4 Inches
  • Strikeplates: Radius Corners, Full Lip, 2 3/4 Inches X 1 1/8 Inches
  • Backsets: Both Deadbolt and Passage Latches Adjustable 2 3/8 Inches to 2 3/4 Inches
  • Bolts: Lever 1/2 Inch Throw
  • Deadbolt 1 Inch Throw
  • Lock Cylinder: Kwikset Type KW1 5-Pin Cylinder
  • Levers Fabricated From Die Cast Zinc
  • Escutcheon Fabricated From Stainless Steel
  • Fabricated With Die Cast Zinc Levers And Steel Mechanism
  • Satin Nickel Finish.

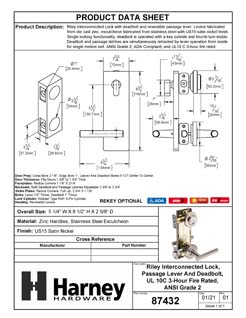

DATA SHEET (CLICK IMAGE TO ENLARGE)

Product Data Specification Sheet Of A Interconnected Door Lock Reversible Passage Lever, UL Fire Rated, ANSI 2, Contemporary Style Riley Collection - Satin Nickel Finish - Product Number 87432
