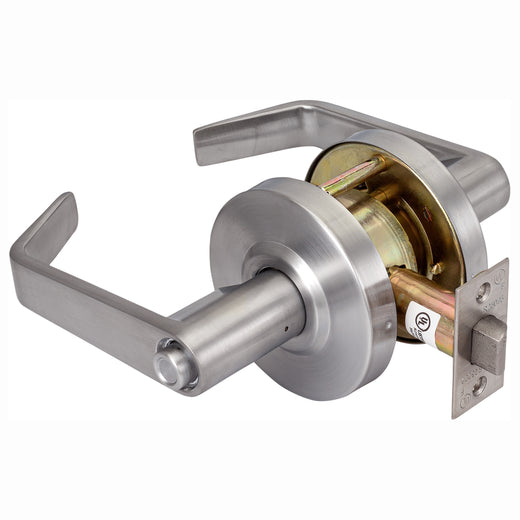

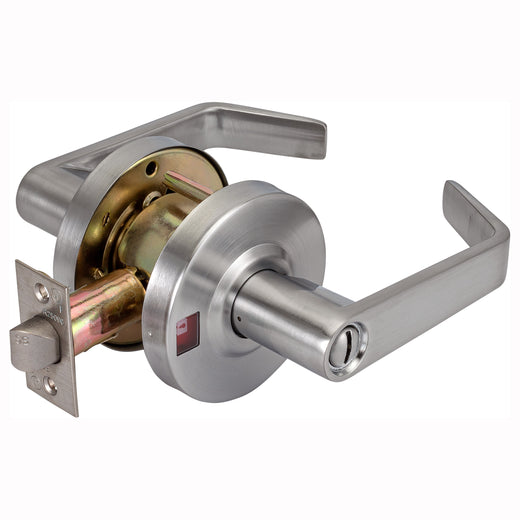

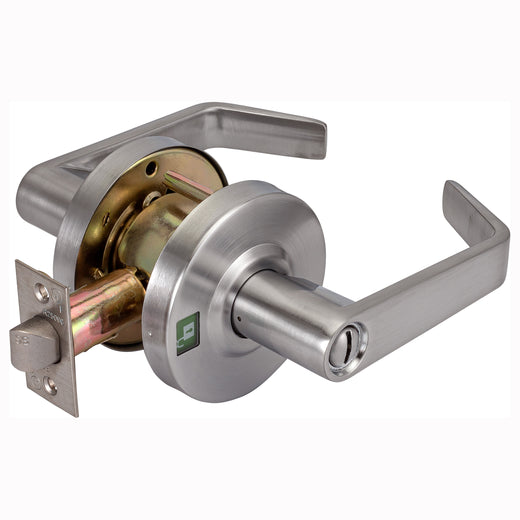

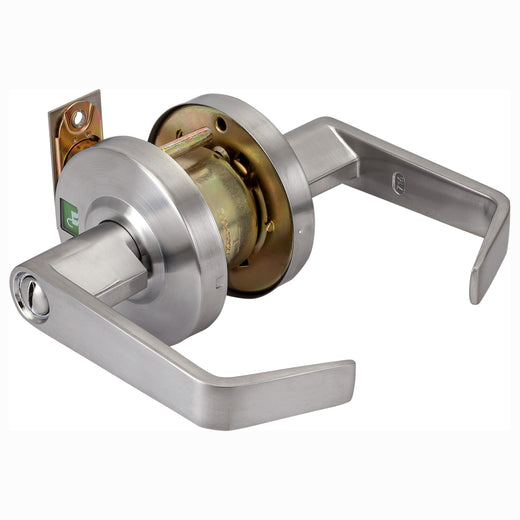

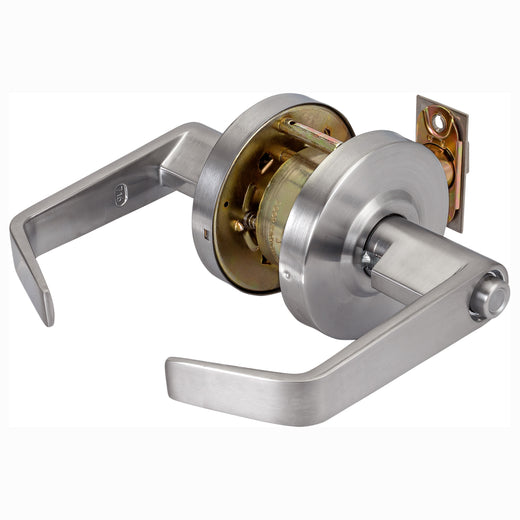

Commercial Door Lever Set Privacy Function With Indicator, UL Fire Rated, ANSI 2, Vigilant Collection
Product #: 86519 | Finish: Satin Chrome
Description
- ANSI Grade 2
- ADA Compliant
- UL 3 Hour Fire Rated
- Fits Doors 1 11/16 Inch To 1 7/8 Inch Thick
- The Outside Lever Locks With An Inside Push Button
- Red/Green Window Shows Locked Or Open Status
- Unlocks Automatically When The Door Closes Or Via Emergency Release From Outside
- The Inside Lever Is Always Unlocked Providing Emergency Exit
- Full Length Lever Handle With 3/8 Inch Return
- Ships With A Fire Rated 2 3/4 Inch Backset Latch
- 2 3/8 Inch Backset Latch (Product # CLP60MM) Sold Separately
- Fabricated With Die Cast Zinc Levers, Steel Internal Mechanism
- Satin Chrome Finish.

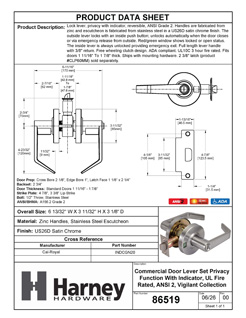

DATA SHEET (CLICK IMAGE TO ENLARGE)
